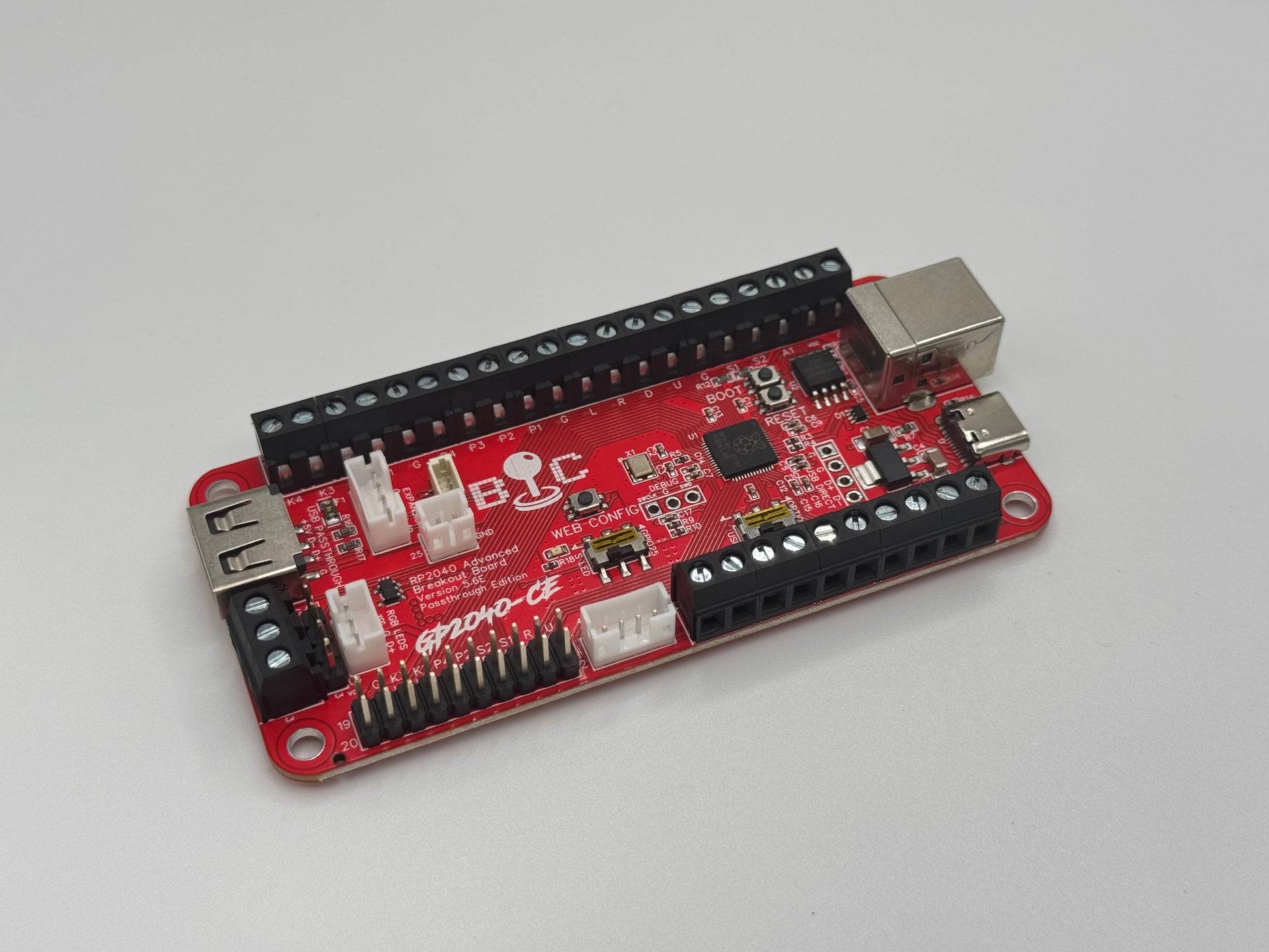

* GP2040-CE Passthrough PCB V5.6E

The GP2040-CE is an input controller firmware designed for RP2040 microcontrollers and compatible with Raspberry Pi Pico and other boards. It is created by the community and offers a cost-effective and feature-rich solution for modern consoles. Regular firmware updates are available to enhance its capabilities. Despite its compact design, the GP2040-CE boasts low latency hardware that allows for endless customization options while maintaining optimal performance.

Current Compatibility List

Always check the official GP2040 site  for recent console compatibility via latest firmware updates.

PC (via XInput)

Playstation 3 (via DInput)

Playstation 4/5 (will time out after 8 minutes). Native PS4 requires an authentic DS4 control key, or the use of a Brook Wingman FGC, Mayflash Magicboots v1.1 USB or PXN N5 dongle with the USB passthrough adapter. Please note that there is no native PS5 support at this time, and only those PS5 titles that support legacy PS4 controllers will work.

Xbox Series X|S, Xbox One (requires use of either Magicboots FPS

Original Xbox (make sure to upgrade to the latest firmware, requires use of a usb to og Xbox cable )

Nintendo Switch

Mini Consoles (ie: Sega Genesis/MegaDrive Mini, NeoGeo Mini, PC Engine/Turbografx 16 Mini, Astro City Mini, etc.)

Steam Deck

MiSTER

Android

Feature List

The GP2040-CE V5.6E offers a wide variety of features at an economical price, including a hardware USB passthrough port now integrated into the control PCB. This allows for compatibility with PS4 and PS5 (specifically through PS4 legacy controller support) using Mayflash Magicboots V1.1 or PSN N5 USB dongles. Additionally, Xbox Series X|S support is available through the use of Mayflash MagicBoots FPS Adapter Joystick Converter for Xbox One or Magic-X Wireless Bluetooth USB Adapter. Traditional USB B and alternate USB C connections are both supported through the Neutrik NAUSB. The device has an overclocked polling rate resulting in an average input latency of 0.77ms in Xinput, Switch, and Dinput modes, and 1.72ms for Playstation 4/5. Further firmware updates are continuously improving input latency. The device also offers multiple SOCD cleaning modes including Up Priority (a.k.a. Stick

GP2040-CE USB Passthrough Port Directly On Board

The USB Passthrough port makes it possible to connect a PS5/PS4 USB dongle, such as the Mayflash Magicboots V1.1 or PXN N5 (not included with purchase), ensuring compatibility with legacy PS4 controller supported games (such as Street Fighter 6, Mortal Kombat 11, etc). Unlike the previous 5.2E version, the USB Passthrough is now integrated into the control PCB, resulting in a more compact form factor compared to the separate passthrough adapter used in the earlier v5.2E model.
